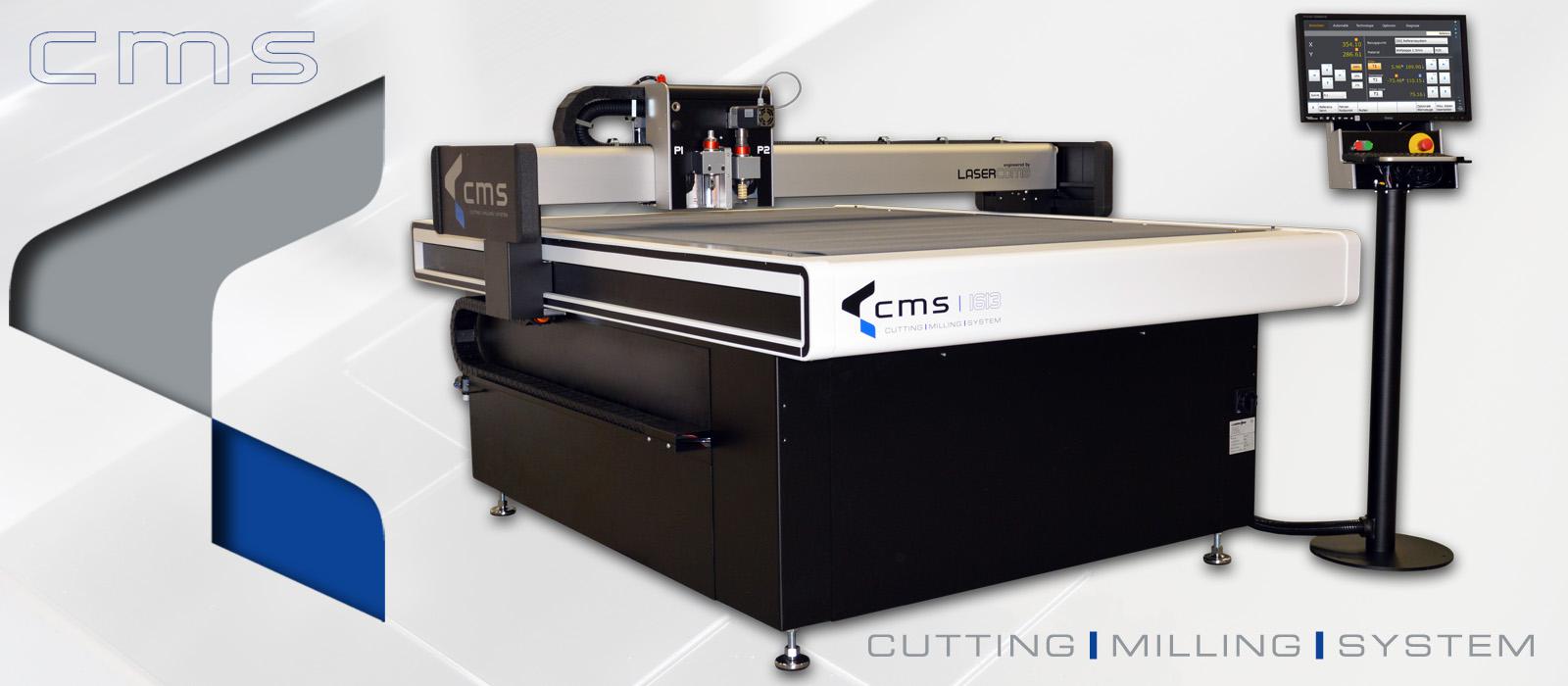

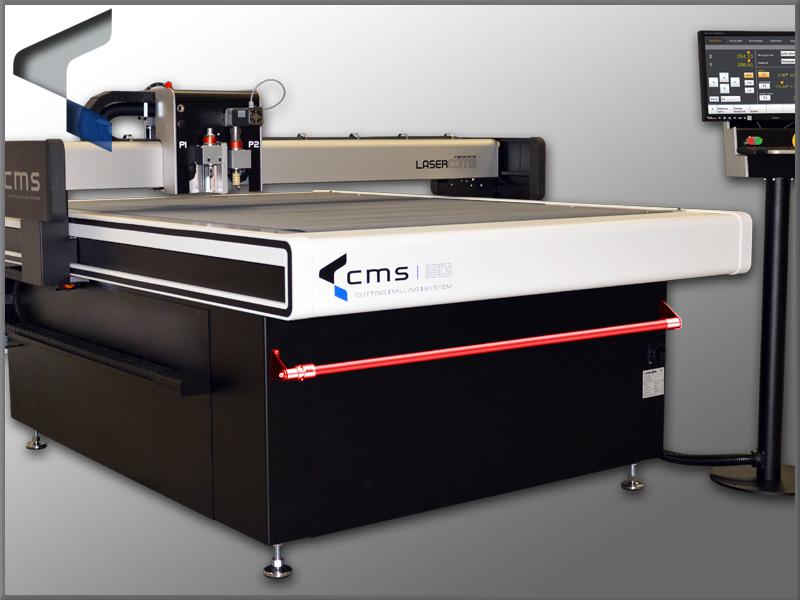

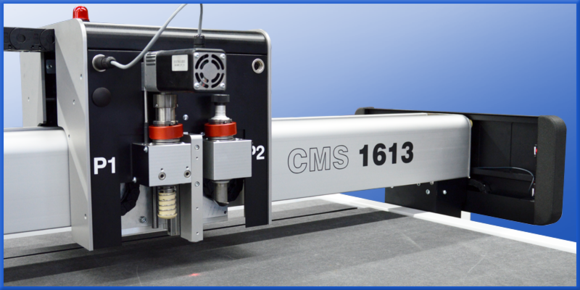

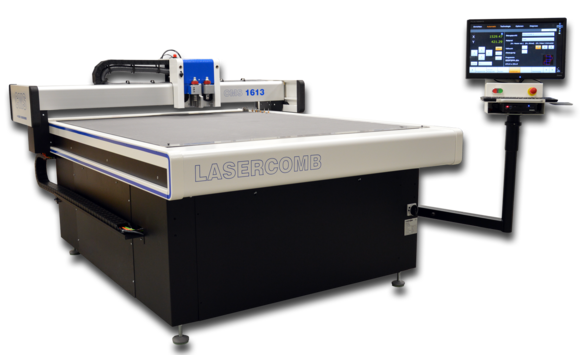

With the CMS, Lasercomb 2018 has introduced a completely new and completely renewed generation of digital processing systems. The machine is designed for the production of samples and small batch production.

Complete integration into the customer's network, remote maintenance function, high ease of use and versatility make this system stand out.

A stringently structured user interface guides the user through the parameterization of the process data in a clear format. Well-designed database guarantees flexibility in configuration and speed in production.

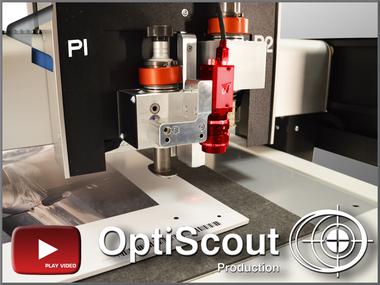

As a medium, two different touchscreen models are available with either a comfortable 10 "display or with 22" screen and increased computing power eg when using a camera on the machine. Combined with the powerful finishing software OptiScout, maximum workflow integration is achieved.

  • Machine does not have to be disassembled for transport
  • Machine can be operated without compressed air (additional options may require compressed air)

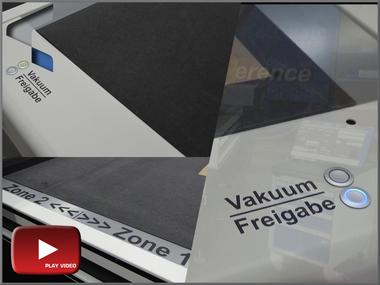

  • Vacuum honeycomb table with 2-4 vacuum zones, selectable at the touch of a button
  • Automatisches abscannen, speichern und korrigieren der Unebenheiten der Tischoberfläche
  • Automatically scan, save and correct the unevenness of the table surface
  • Main axes (X-axis, Y-axis) equipped with linear measuring systems

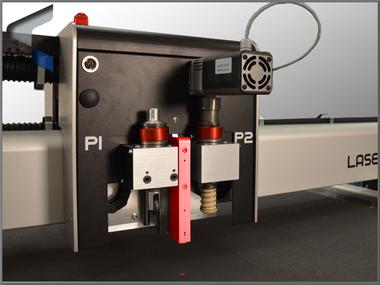

  • Laser pointer for precise positioning of the tools
  • Standby Position of the tools for time optimization
  • Free-ride option at the end of processing for easier operation
  • Low-noise belt drive
  • Any number of different working heights of the tools digitally adjustable
  • Control via color touch screen panel 10 "(optional 22")
  • Intuitive user guidance for easy and safe machine operation
  • Various operator-settable zero positions
  • Can be controlled directly from one or more CAD workstations
  • Machine can be integrated into the home network
  • Predefined and user-editable material database
  • Extensive service and utilities
  • Remote maintenance possible
  • System can be controlled with OptiScout
  • Common workspace Milling and cutting is limited to 1240 x 1300 mm (a.g. for model 1613)

The ideal table size for every application:




CMS 1013

1000x1300 mm

(39" x 51")

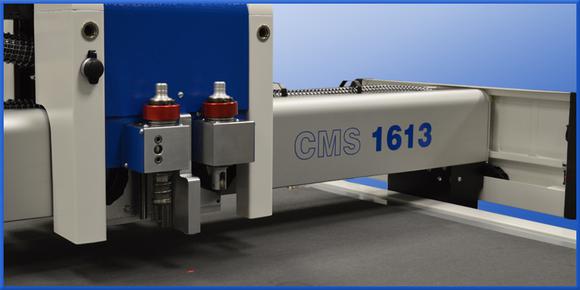

CMS 1613

1600x1300 mm

(63" x 51")

CMS 2113

2100x1300 mm

(83" x 51")

CMS 2517

2500x1700 mm

(98" x 67")

CMS 3217

3200x1700 mm

(126" x 67")

CMS 2520

2500x2000 mm

(98" x 79")

CMS 3220

3200x2000 mm

(126" x 79")



There are several options for your CMS. Therefore, the system is versatile and meets your requirements.

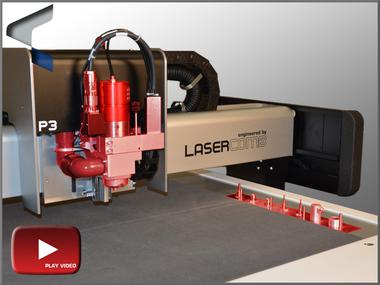

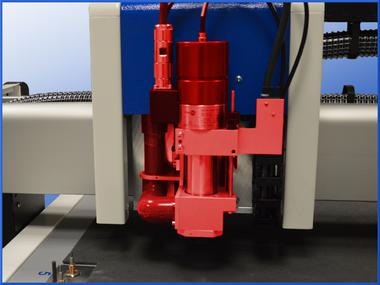

Milling module (High Performance)

Efficient and precise machining of all conventional materials made possible by a powerful high-frequency spindle with 1 kW, designed for up to 50.000 rpm. This option includes an effective suction.

Application: Milling wood, synthetics, acryl etc.

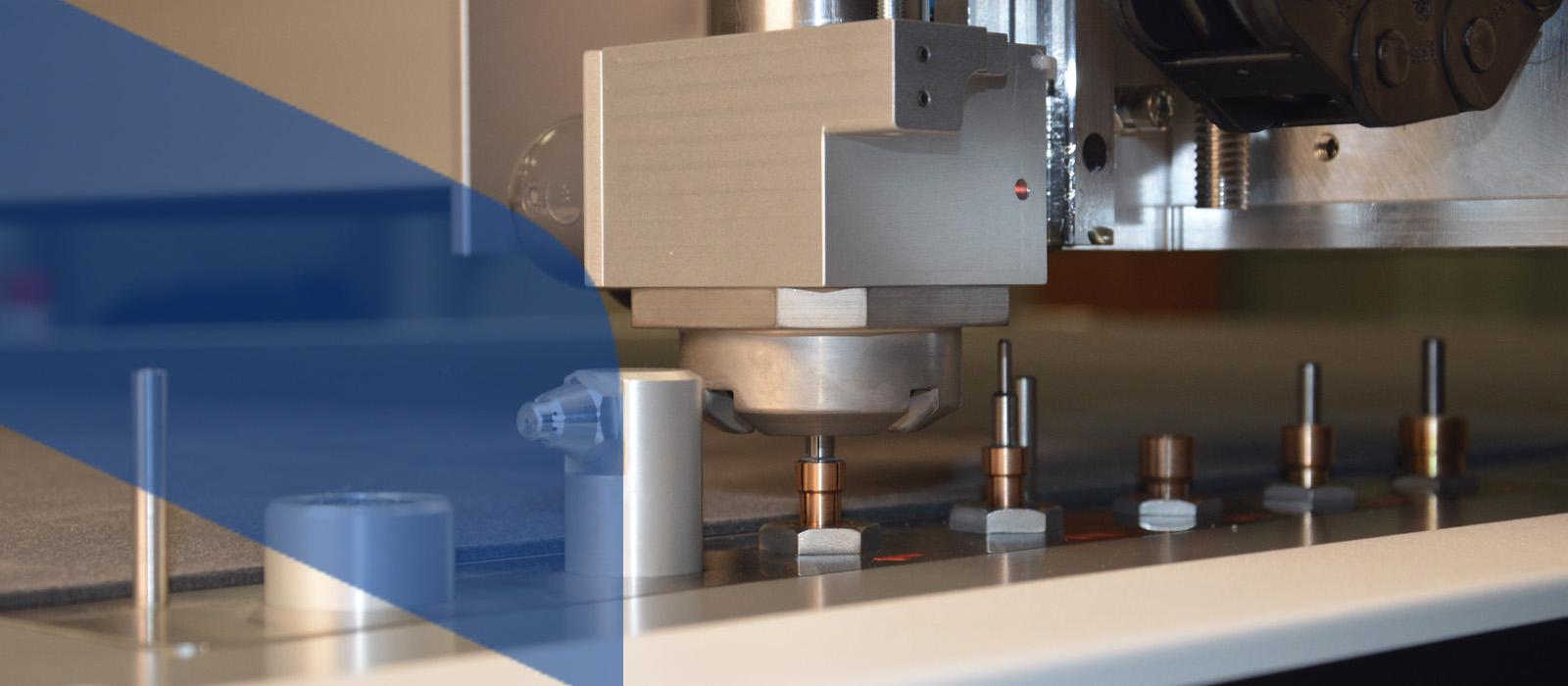

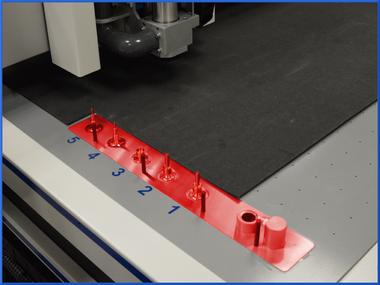

Tool magazine

Tool magazine with 5 freely configurable tool stations and an integrated tool cleaning station.

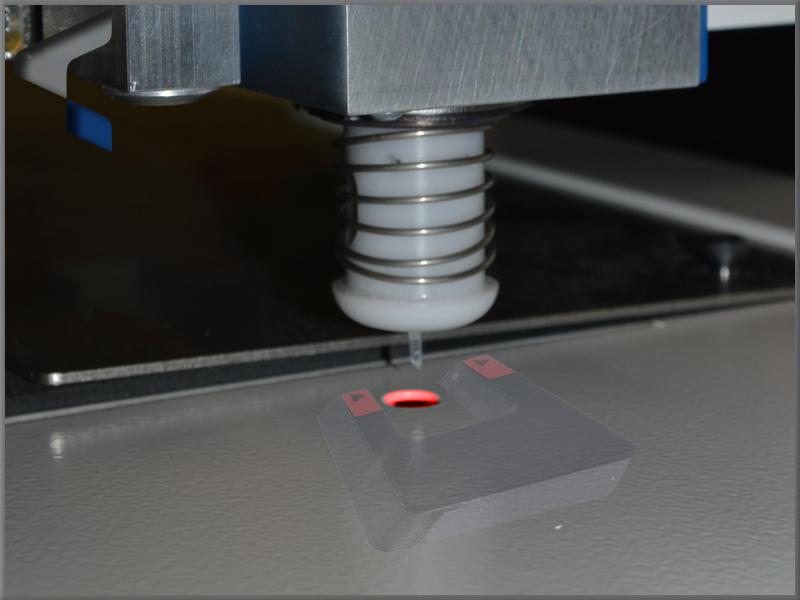

Tool measurement

With the non-contact tool measurement, which is integrated in the machine body, they measure the tools used - and thus ensure an exact machining depth.

The frequency of the measurements can be selected in the user interface.

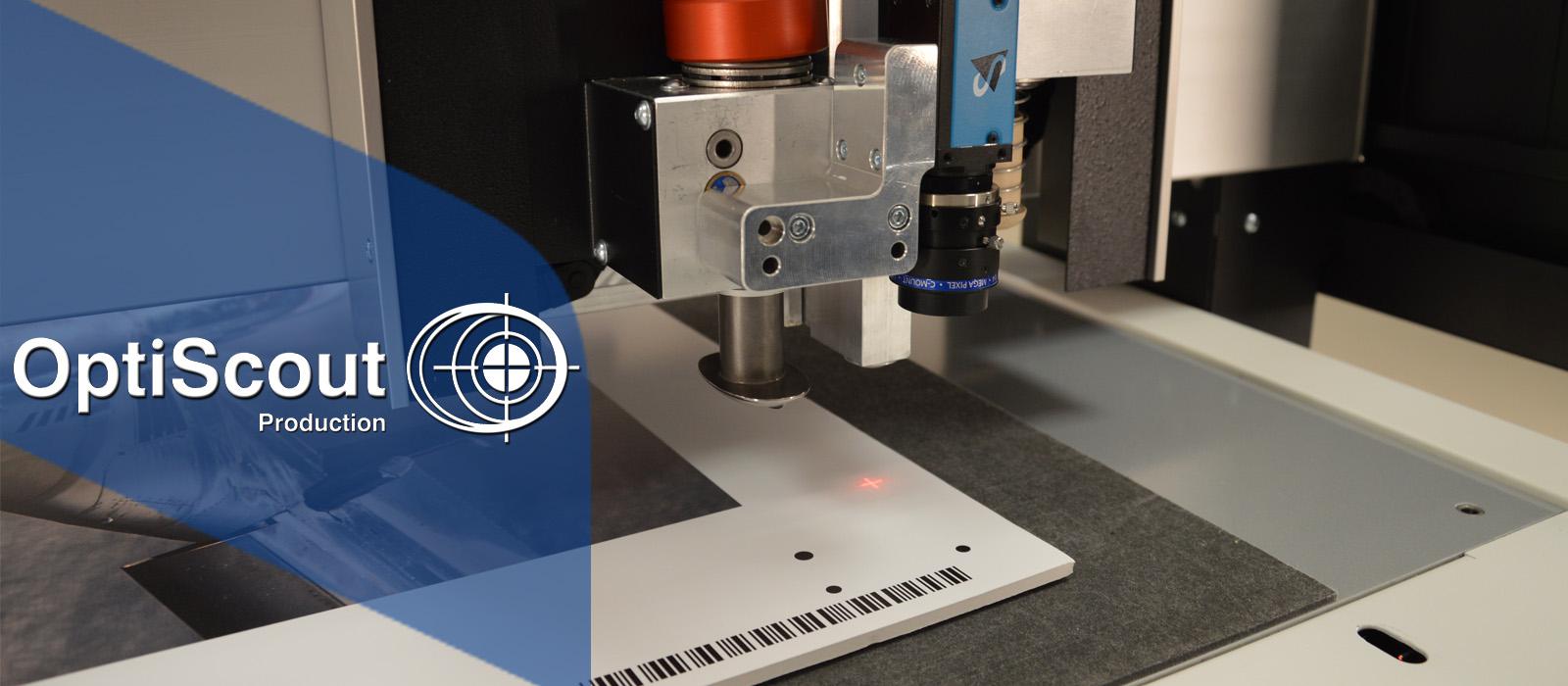

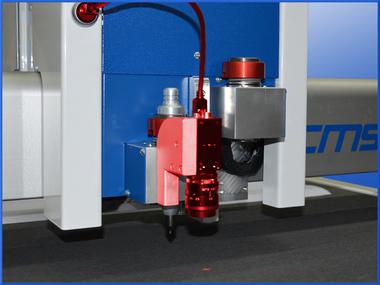

Camera System

The main application is the exact registration of position, position and possibly scaling effects when working on already printed materials to cut prints with precise contours.

In addition to the finishing software OptiScout, maximum integration of the workflow is achieved.

Milling unit (s)

Milling unit for processes with low power requirement in addition to the milling module. The unit can be used in a universal module. Application examples are surface engraving and milling channels with small width and depth.

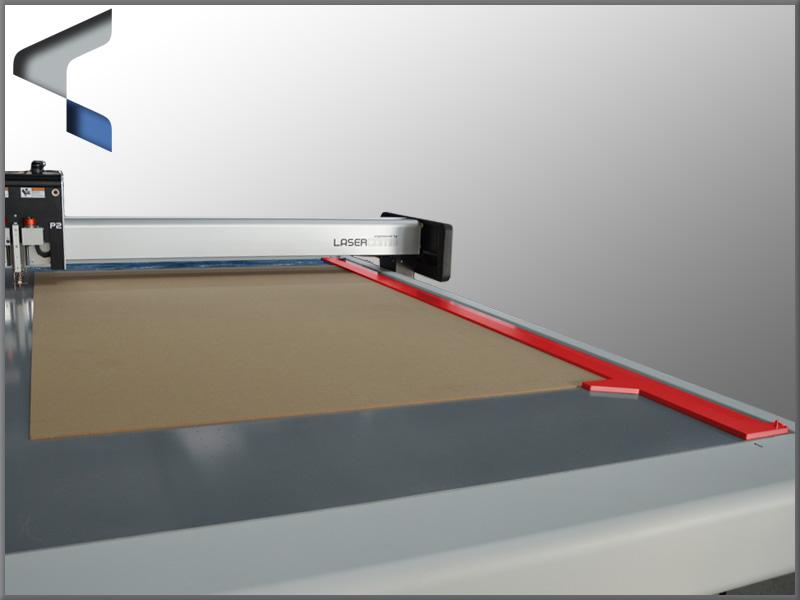

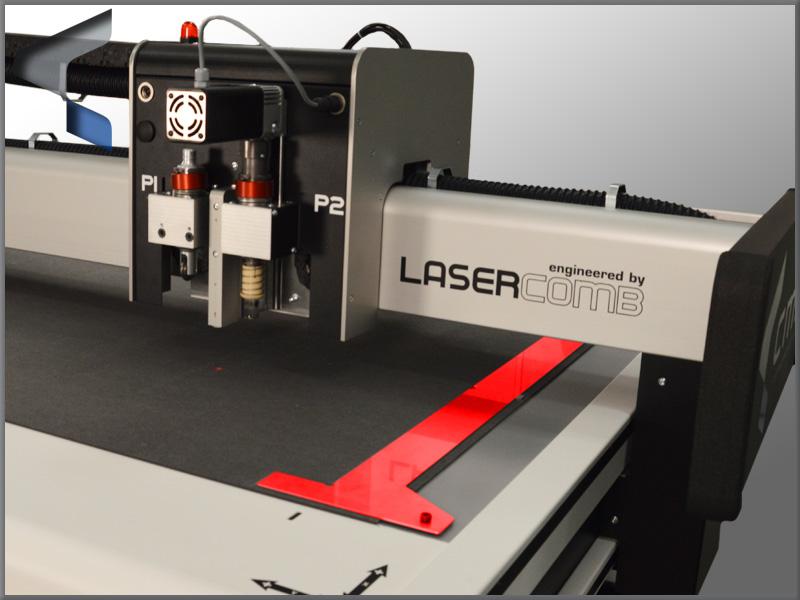

Stop - bar

Easy to apply stop bar for X and / or Y direction for mechanical alignment of manually applied materials.

Multifunctional tool heads – Specialized for your application!
