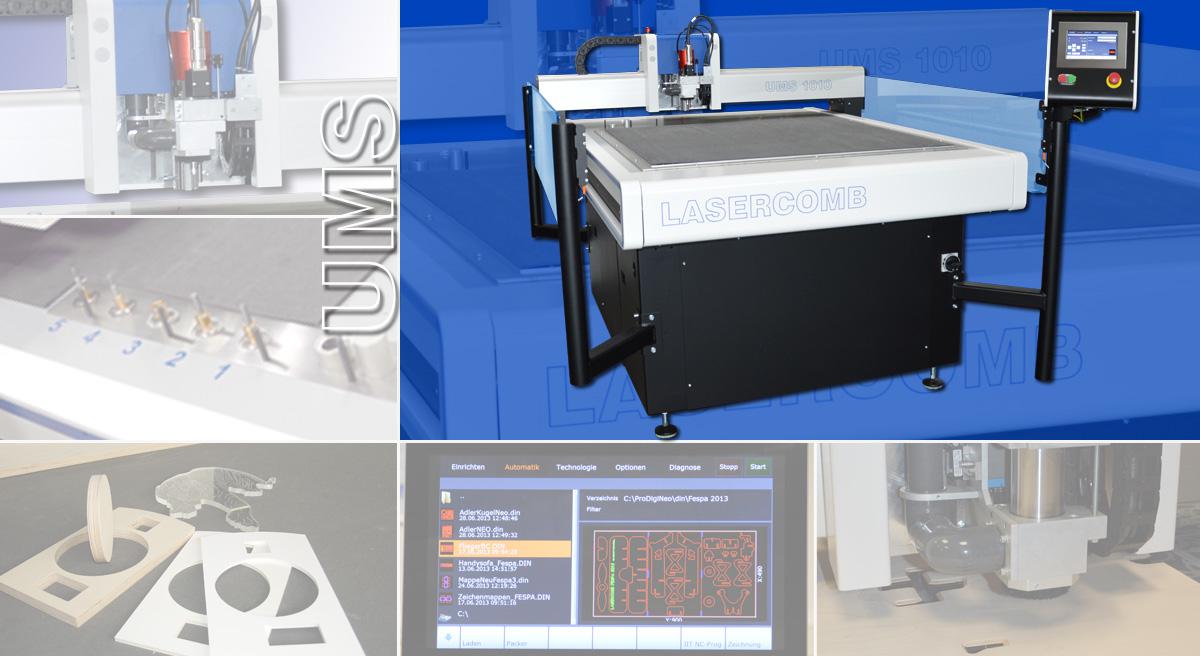

UMS milling machine for the production of Pertinax counter-matrices

In principle, the UMS is a universally usable milling machine, so that any material can be milled if required and within the existing technical parameters. However, the machine is specifically designed for the production of Pertinax counter matrices. High precision, convenient operation, network connection with remote maintenance capability, low space requirement, these are the main advantages that speak in favour of the UMS.

A strictly structured user interface guides the user through the parameterization of the process data in a clear form. Easily understandable technology databases guarantee flexibility in configuration and speed in production.

Two different touch screen models are available as a medium with either a convenient 10" display or a 22" screen and increased computing power.

  • Vacuum honeycomb table with 1070 x 1070 mm working area

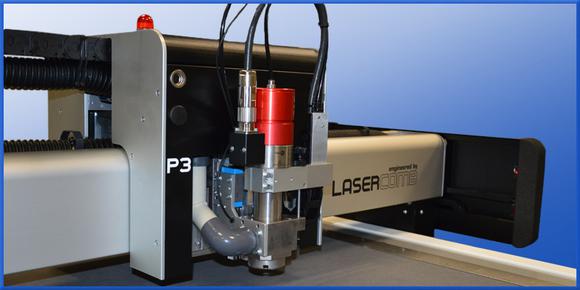

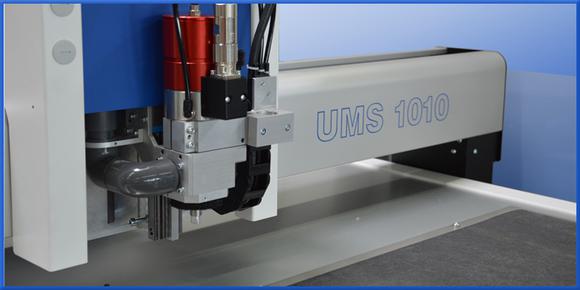

  • High-frequency milling spindle with 1kW and pneumatic collet chuck
  • Fully automatic tool change
  • Tool magazine with 5 places, tool cleaning, tool measurement
  • Integrated chip extraction
  • Tracking height control with continuous measurement
  • Vacuum pump can be mounted in the base frame as well as outside
  • Main axes (X-axis; Y-axis) equipped with linear measuring systems
  • Free choice at the end of machining for easier operation
  • Machine does not have to be disassembled for transport
  • Low noise belt drive
  • Intuitive operator guidance for easy and safe machine operation
  • Different zero positions set by the operator
  • Directly controllable from one or more CAD workstations
  • Machine can be integrated into house network
  • Predefined and operator editable material database
  • Comprehensive service and utility programs
  • Remote maintenance possible
