Used machines

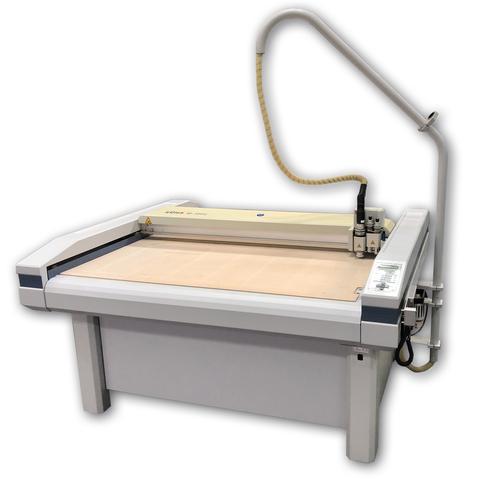

Digital Cutter Zünd M-1200

Second hand machine, year of manufacture 2008  working area: 1200 x 1300 mm


Equipment:

- C2-P twinhead with pen modu
- oscillating cutting unit
- creasing wheels
- tool unit for gas pressure pens
- kisscut tool

automatic tool measurmet





delivery time:   short term available  Warranty:   No warranty

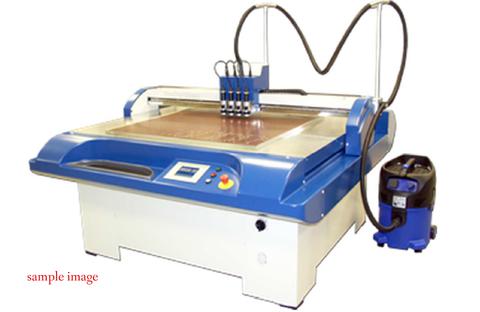

Sample Cutting System ProDigi 1613

Second hand machine, year of manufacture 2006 (S/N K64645) with CNC-controlled Z-axis for processing of solid and corrugated board working area: 1600 x 1300 mm

Equipment:
- 1 light pointer
- 2 free placeable, both tangentially controlled:
- 1 tangential cutting unit
- 1 tangential creasing unit with 2 pt. creasing wheel
- 1 tangential creasing unit with creasing wheel R10
- 2 drawing units for ballpoint pen refills
- 1 oscillating cutting unit
- 1 scribing stitch unit
- 1 stop bar
- 1 additional cutting pad
- Oscillating cutting unit for cutting rubber
- Operation 5,7" touch panel
- Connection via EC server

Further options can be upgraded

Delivery time:   8 weeks   Warranty:   No warranty

Water Jet Cutting System ProAquaJet 1613

Second hand machine, year of manufacture 2008 (S/N 81138) Working area: 1600 x 1300 mm / Free passage under the bridge for material up to 45 mm
thickness. For cutting injection molding materials e.g. closed cell rubber, open cell rubber, vulkolan

Equipment:

- High pressure HD pump Ecotron 30.08
   (3000 bar, 0.8 l/min.)
- Manual pressure adjustment
- Aluminum grid
- High pressure cutting head
- Straight cut
- prepared for 480V / 60 HZ

Further options can be upgraded

delivery time:   short term available   Warranty:   No warranty

Lasercomb ProPertinax

Second hand machine, year of manufacture 2009 (S/N 97082) for milling of Pertinax counterfittings working area: 1070 x 1070 mm

Equipment:

- Operation 5,7" touch panel
- connection via EC server
- 4 high frequency milling spindles for milling of
  Pertinax counterfacings. Speed adjustable in
  steps of 5000  rpm from 0 - 50.000 rpm 180 W
  continuous power

Delivery time:   8 weeks delivery time   Warranty:   No warranty

Sample Cutting System ProDigi 2113

Second hand machine, year of manufacture 2006 with CNC-controlled Z-axis for processing of solid and corrugated board working area: 2100 x 1300 mm

Equipment:

- 1 light pointer
- 2 free placeable, both tangentially controlled:
- 1 tangential cutting unit
- 1 tangential creasing unit with 2 pt. creasing wheel
- 1 tangential creasing unit with creasing wheel R10
- 1 drawing units for ballpoint pen refills
- 1 oscillating cutting unit
- 1 scribing stitch unit
- 1 stop bar

- 1000W Suhner Milling unit for Wood , Dibond,
   Plexi etc. for use on both tool places

- Operation 5,7" touch panel
- Connection via EC server

Further options can be upgraded

Delivery time:   short term available   Warranty:   No warranty

Mashine will be sold by the customer. Mashine is running and can be viewed in action.  Mashine is in very good condition.

Requests please to info@alma-it.de
