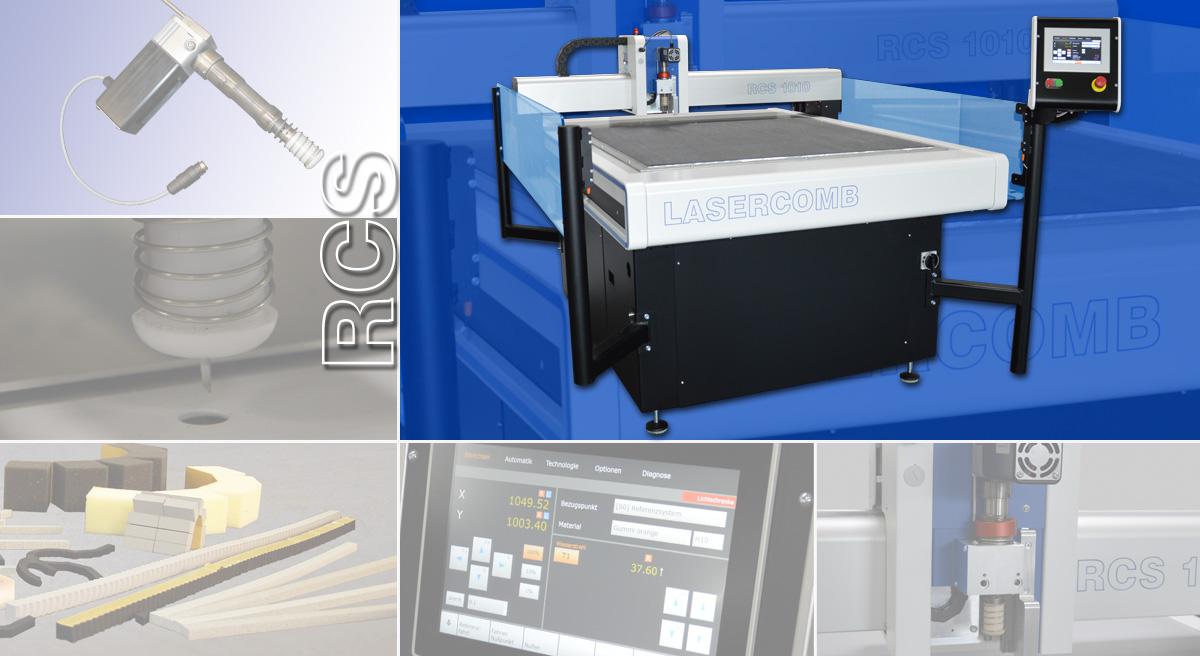

RCS cutting machine for cutting rubber die linings

The RCS cutting system is specifically designed for the production of rubber linings for cutting dies. The typical working range of 1070 x 1070 mm for this application optimizes the space required. A powerful oscillating knife guarantees high productivity, long blade life and high-quality cutting results.

A strictly structured user interface guides the user through the parameterization of the process data in a clear form. Easily understandable technology databases guarantee flexibility in configuration and speed in production.

Two different touchscreen models are available as a medium with either a convenient 10" display or a 22" screen and increased computing power.

  •  Vacuum honeycomb table with 1070 x 1070 mm working range

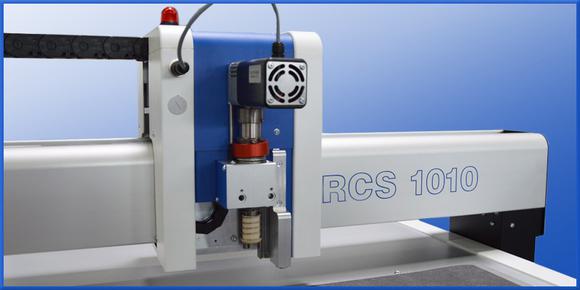

  •  Powerful oscillation knife with a frequency of 12,000 strokes per minute and a stroke of 3 mm
  •  Knife blades available for all typical materials
  •  Automatic scanning, storage and correction of table surface
  •  Vacuum pump can be mounted both in the base frame and externally
  •  Main axes (X-axis; Y-axis) equipped with linear measuring systems
  •  Laser pointer for exact positioning of the tools
  • Freetravel at the end of machining for easier operation
  •  Machine does not have to be disassembled for transport
  •  Low noise belt drive
  •  Intuitive operator guidance for easy and safe machine operation
  •  Different zero positions set by the operator
  •  Machine can be integrated into the company's network
  •  Predefined and operator editable material database
  •  Comprehensive service and utility programs
  •  Remote maintenance possible
